GM LS7



GM LS7

General Motors LS7 series engine build by KMS racing engines with up to 700 Horse power for GT and other race classes

Engine manufacturer   General Motors
Type   LS7
Configuration / # cylinders   V8
Peak horsepower   550-700 *
Peak torque   700-850 *
Maximum RPM   7000 *
Displacement   7000cc
Bore   KMS
Stroke   KMS
Compression ratio   KMS
# of camshafts   1
Pistons   KMS design
Valves / made   16 / steel
Lifter type   Roller *
Manifold type   KMS

*   Engine development on request for different race classes.

> Click image to enlarge

TOTAL: 4 - files

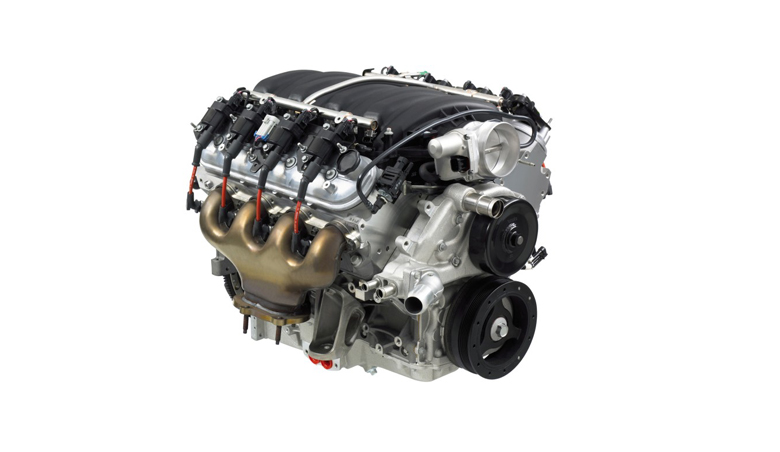

File: 06_ENGB_SMBL_LS7_01
Size: 110 KB
Download

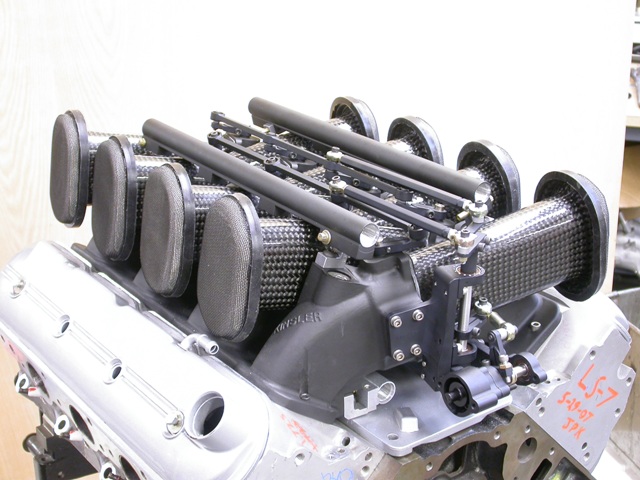

File: LS7 air
Size: 111 KB
Download

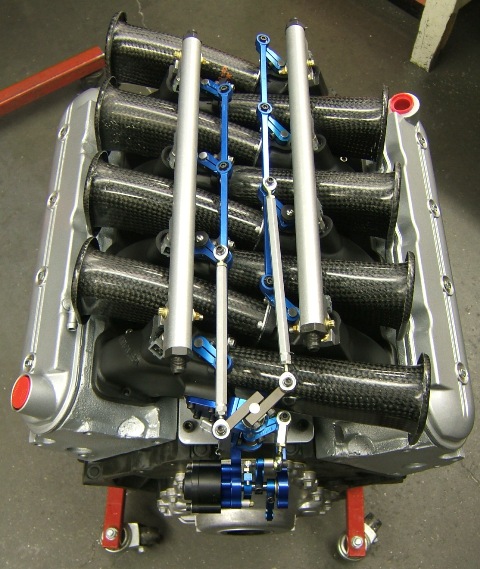

File: LS7 top
Size: 119 KB
Download

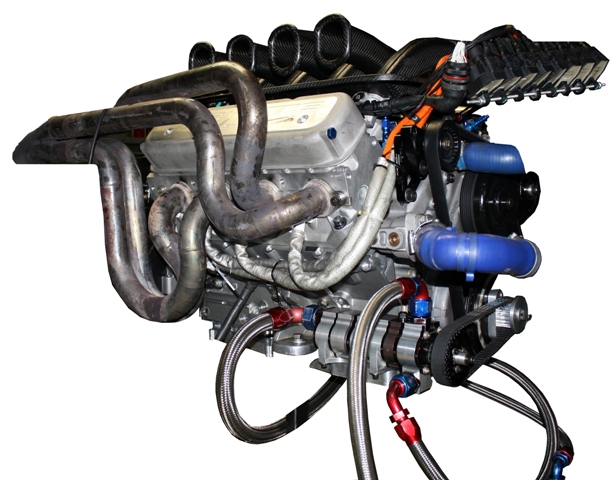

File: LS7-Warhawk klein web
Size: 174 KB
Download
